| Place of Origin: | China |
|---|---|
| Brand Name: | DingZhi |
| Certification: | ISO |
| Model Number: | 90A |
| Minimum Order Quantity: | 1KG |
| Price: | Negotiation |
| Packaging Details: | Waterproof bag, 25KG per bag |
| Supply Ability: | 25Tons/day |
| Solubility: | 481.7 | Flammability: | 90-100℃ |
|---|---|---|---|
| Brand Nmae: | 481.7 | Feature: | 90-100℃ |
| Tensile Strength: | 325% | Uv Resistance: | Transparent |
| Appearance: | 325% | Product Form: | 478.5 |
| High Light: | Extrusion Molding TPU Raw Material,Extrusion TPU Raw Material,TPU white plastic pellets |
||

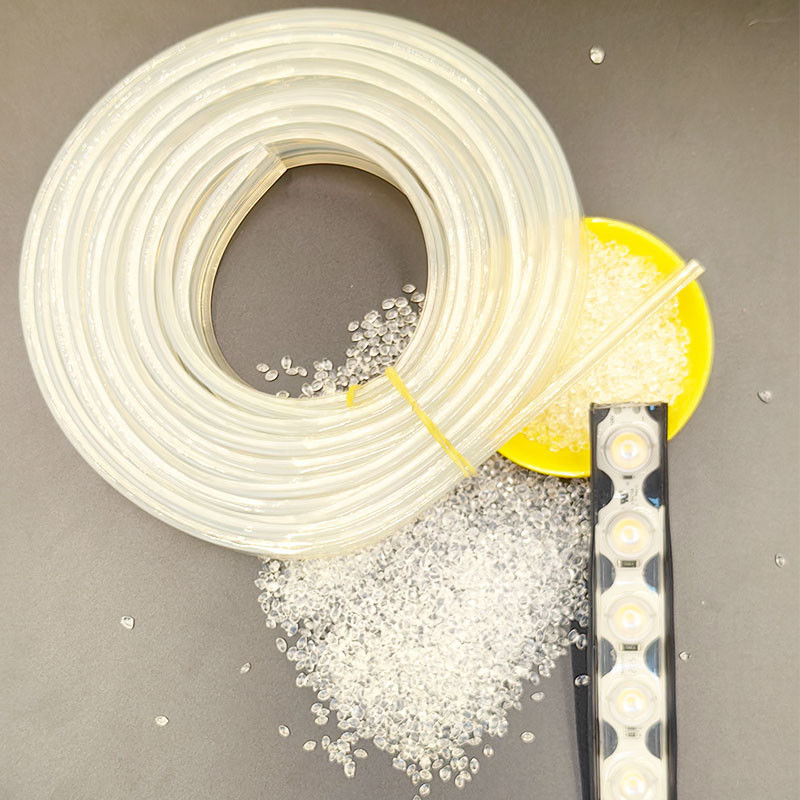

Non Flammable Tpu Raw Material Forming Uv Resistant For Extrusion Molding
Specification
| Item | Value |
| Place of Origin | Guangdong,China |
| Brand Name | DingZhi |
| Model Number | EP-90A |
| Product name | Polyether-Based TPU Granule |
| Color | Transparent/Customized |
| Application | Livestock Ear Tags |
| Hardness | 90A-93A |
| Type | Virgin & Off grade |
| Grade | Injection |
| Advantage | Oil-resistant water-resistant mold-resistant impact-resistant |
| Feature | Environmentally Friendly |
| Tensile strength(Mpa) | 152.7kN/m |
| Tear strength(KN/m) | 45-200 |
| Abrasion,mm3 | 45-100 |
| 300%Tensile Stress,Mpa | 3-38 |
| Elongation at break,% | 350-900 |
| 70℃ Compression permanent deformation,% | 35-60 |
| Processing temperature, ℃ | 185-205 |
| Advantage |
1. Competitive price, high quality, on-time delivery, free sample 2. Environment friendly 3. High Heat Resistance, High impact resistance 4. Without any impurity 5. Can be reinforced with the glass fiber/toughness/flame retardant/UV stabilizer |
| Characteristic |
1. wear resistance. TPU plastic raw material has excellent wear resistance, more than five times the wear resistance of natural rubber. 6. High-temperature resistance and oxidation resistance. TPU has good antioxidant capacity; The temperature resistance can reach 120℃. |
| Application | Shoe purpose: shoe soles, shoe decoration, snow boot…etc. Wheel purpose: skate wheel, castor wheel, load wheel…etc. Industrial parts purpose: O-ring, oil seal, gasket…etc. Mobile purpose: mobile protection case, mobile phone accessories…etc. |
| Package | 25KG per carton |
| Payment terms | TT, LC, Paypal. |
| Delivery time | Within 7-10 days |
| MOQ | 1 Kg and Free Sample |
| Capacity per day | 25 tons |
PRODUCT PARAMETERS
TPU Material is widely used in film product because its excellent property. And according different usage of TPU film, we recommend you use different TPU material include Polyester TPU, Polyether TPU and so on.
| Performance items | Test Method | Test Unite | Test Results |
| Hardness | ISO R 868 | Shore | 90A-93A |
| Proportion | ASTM D-792 | g/cm³ | 1.19 |
| Melting index value | ISO 1133 | g/10min | 21.8/2.16KG |
| DIN friction loss | DIN-53516 | mm³ | |
| Tear strength | ASTM D-624 | kN/m | 152.7 |
| Tensile strength | ASTM D-412 | ㎏/c㎡ | 418.9 |
| Total elongation at break | ASTM D-412 | % | 593.5 |
| 100% modulus | ASTM D-412 | ㎏/c㎡ | 123.5 |
| Anti UV/anti yellowing | Sunlight 300W/50 degrees/24hours | NA | |
| Transparency | Visual inspection of step test pieces | 1.5-2.0MM | |
| Performance items | 65A | 70A | 75A | 80A | 85A | 90A | 95A | 98A | 64D |
| densitycm³(ISO1183) | 1.10±0.02 | 1.14±0.02 | 1.20±0.02 | 1.20±0.02 | 1.21±0.02 | 1.21±0.02 | 1.21±0.02 | 1.22±0.02 | 1.22±0.02 |
| Hardness,Shore A/D(ASTM D2240) | 65±3 | 70±3 | 75±3 | 80±3 | 85±3 | 90±3 | 95±3 | 98±3 | 64±3 |
| 300%Tensile Stress, Mpa(ISO37) | 3 | 4.5 | 6.5 | 9 | 11 | 15 | 22 | 24 | 33 |
| Tensile strength, Mpa(ISO37) | 18 | 29 | 33 | 36 | 43 | 50 | 51 | 52 | 54 |
| Elongation at break,%(ISO37) | 900 | 800 | 800 | 700 | 600 | 550 | 500 | 480 | 420 |
| Tear strength, KN/m(ISO34) | 45 | 55 | 80 | 90 | 100 | 110 | 130 | 150 | 170 |
| 70℃Compression permanent deformation,%(ISO81) | 35 | 40 | 40 | 40 | 45 | 45 | 50 | 50 | 55 |
| Abrasion,mm³(ISO46) | 100 | 70 | 60 | 55 | 50 | 50 | 45 | 45 | 45 |
THERMOPLASTIC POLYURETHANE TPU RAW MATERIAL
TPU is thermoplastic polyurethane, which can be divided into polyester and polyether types. It has a broad hardness range (60ha-85hd), wear resistance, oil resistance, transparency, and good elasticity. It is widely used in daily necessities, sporting goods, toys, decorative materials, and so on. Halogen-free flame retardant TPU can also replace soft PVC to meet the environmental protection requirements of more and more fields. TPU has many brands and uneven quality. It's best to go through a detailed evaluation and demonstration when choosing TPU, otherwise, we can't get the best result of cost performance. TPU has a wide range of hardness, high strength, friction resistance, good toughness, good elasticity, cold resistance, oil resistance, water resistance, aging resistance, climate resistance, and other characteristics unmatched by other plastic materials. At the same time, it also has many excellent functions, such as high water resistance, moisture permeability, wind resistance, cold resistance, antibacterial, mildew resistance, heat preservation, UV resistance, and energy release. It is widely used in shoe materials, bag materials, sports equipment, medical equipment, the automobile industry, packaging products, wire and cable coating materials, hoses, films, coatings, inks, adhesives, melt spun spandex fibers, artificial leather, bonded clothing, gloves, air blowing products, agricultural greenhouse, air transportation, and national defense industry.
THE MAIN CHARACTERISTICS OF TPU
PRODUCT APPLICATION:
TPU has many applications including automotive instrument panels, caster wheels, power tools, sporting goods, medical devices, drive belts, footwear, inflatable rafts, and a variety of extruded film, sheet, and profile applications. TPU is also a popular material found in outer cases of mobile electronic devices, such as mobile phones. It is also used to make keyboard protectors for laptops. TPU is well known for its applications in performance films, wire and cable jacketing, hose, and tube, in adhesive and textile coating applications, and as an impact modifier of other polymers. TPU pellets are used as most recent cushioning technology, known as Boost. Several thousands of TPU pellets are bound together to create a comfortable sole for the shoe.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
